EPS Foam Coolers with Outer Corrugate
Great value multi-purpose shippers

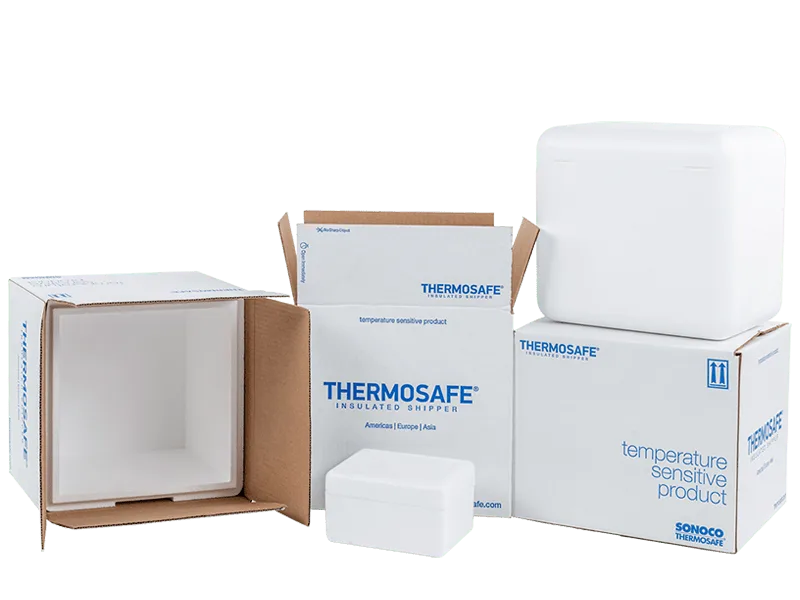

Our extensive line of EPS insulated containers assembled in corrugated cartons, offer the ideal solution for the safe storage and delivery of many refrigerated or frozen materials. They are lightweight yet tough making them a popular choice when shipping temperature sensitive products.
Design features include dome lids, molded-in handles, rounded corners and edges, and recessed strapping grooves
- Designed to maximise temperature control and withstand the rigors of transport
- Several thicknesses of EPS offer a range of thermal performance
- 24 hours or less: Choose thin-wall shippers, with 0.75” to 1.13” of EPS foam insulation
- 24 to 48 hours: Choose standard 1.5” wall thickness
- 48 hours or more: Choose thick-wall shippers, with 1.75” to 2.25” of EPS insulation
- 200lb test outer corrugate provides additional physical protection
- Products available in case pack quantities as well as pallets
Don’t need the corrugate? No problem. Take a look at the huge choice of EPS Foam Coolers without Outer Corrugate.
EPS Foam Coolers with Outer Corrugate Products
| Part Number |
Pallet Qty |
Wall Thickness (in) |
Wall Thickness (mm) |
Internal Dimensions (in) | Internal Dimensions (mm) | External Dimensions (in) | External Dimensions (mm) | Internal Volume (l) |
Manuf. Loc. |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | L | W | H | L | W | H | L | W | H | ||||||
| 79-5LB4 | 280 | 0.75 | 19 | 9.5 | 7.5 | 5.6 | 241 | 191 | 143 | 11.0 | 9.0 | 7.0 | 279 | 229 | 178 | 6.6 | USA |
| 79-8LB4 | 200 | 0.75 | 19 | 9.5 | 7.5 | 8.4 | 241 | 191 | 213 | 11.0 | 9.0 | 10.0 | 279 | 229 | 254 | 9.8 | USA |
| 79-10LB4 | 160 | 0.75 | 19 | 9.5 | 7.5 | 10.4 | 241 | 191 | 264 | 11.0 | 9.0 | 12.0 | 279 | 229 | 305 | 12.1 | USA |
| 1510-8LB4 | 120 | 0.75 | 19 | 15.4 | 9.6 | 7.4 | 391 | 245 | 189 | 17.0 | 11.3 | 9.0 | 432 | 286 | 229 | 18.1 | USA |
| 1712-8LB4 | 60 | 0.75 | 19 | 17.0 | 11.8 | 8.0 | 432 | 298 | 203 | 18.6 | 13.4 | 9.6 | 473 | 340 | 245 | 26.2 | USA |
| 913-6LB4 | 144 | 1.00 | 25 | 13.1 | 9.3 | 6.0 | 334 | 235 | 152 | 15.5 | 11.5 | 8.0 | 394 | 292 | 203 | 11.9 | USA |
| 40-1LB4 | 96 | 1.00 | 25 | 11.4 | 8.4 | 11.0 | 289 | 213 | 279 | 13.8 | 10.5 | 13.0 | 349 | 267 | 330 | 17.2 | USA |
| 1613-8LB4 | 48 | 1.00 | 25 | 15.8 | 12.8 | 8.5 | 402 | 325 | 216 | 18.1 | 15.1 | 10.9 | 461 | 384 | 276 | 28.2 | USA |
| 2215-16LB4 | 24/16 | 1.00 | 25 | 21.0 | 15.1 | 15.3 | 533 | 384 | 387 | 24.0 | 18.0 | 17.9 | 610 | 457 | 454 | 79.4 | USA |
| 1411-7LB4 | 90 | 1.13 | 29 | 13.8 | 11.0 | 6.8 | 349 | 279 | 171 | 16.5 | 13.8 | 8.3 | 419 | 349 | 210 | 16.7 | USA |
| 1212-10LB4 | 72 | 1.13 | 29 | 12.0 | 12.0 | 9.8 | 305 | 305 | 248 | 14.3 | 14.3 | 11.5 | 362 | 362 | 292 | 23.0 | USA |
| 2113-10LB4 | 48 | 1.13 | 29 | 21.6 | 13.4 | 10.6 | 548 | 341 | 270 | 24.0 | 15.9 | 12.4 | 610 | 403 | 314 | 50.5 | USA |
| 609B4 | 360 | 1.50 | 38 | 6.3 | 4.3 | 5.5 | 159 | 108 | 140 | 9.0 | 7.5 | 8.0 | 229 | 191 | 203 | 2.4 | USA |
| 68-4LB4 | 140 | 1.50 | 38 | 8.0 | 6.0 | 4.3 | 203 | 152 | 108 | 11.0 | 9.0 | 7.3 | 279 | 229 | 184 | 3.3 | USA |
| 68-7LB4 | 160 | 1.50 | 38 | 8.0 | 5.9 | 7.0 | 203 | 149 | 178 | 11.0 | 9.0 | 10.0 | 279 | 229 | 254 | 5.4 | USA |
| 98-4LB4 | 144 | 1.50 | 38 | 9.4 | 8.3 | 4.8 | 238 | 210 | 121 | 12.4 | 11.3 | 7.8 | 314 | 286 | 197 | 6.0 | USA |
| 68-9LB4 | 80 | 1.50 | 38 | 8.0 | 5.9 | 8.9 | 203 | 149 | 226 | 11.0 | 9.0 | 11.9 | 279 | 229 | 302 | 6.8 | USA |
| 98-6LB4 | 120 | 1.50 | 38 | 9.3 | 8.1 | 6.3 | 235 | 207 | 159 | 12.5 | 11.4 | 9.4 | 318 | 289 | 238 | 7.7 | USA |
| 68-12LB4 | 120 | 1.50 | 38 | 8.0 | 5.9 | 11.5 | 203 | 149 | 292 | 11.0 | 9.0 | 14.5 | 279 | 229 | 368 | 8.9 | USA |
| 1012-5LB4 | 90 | 1.50 | 38 | 11.6 | 9.9 | 4.9 | 295 | 251 | 124 | 14.9 | 13.3 | 8.3 | 378 | 337 | 210 | 9.2 | USA |
| 98-8LB4 | 64 | 1.50 | 38 | 9.3 | 8.3 | 8.0 | 235 | 210 | 203 | 12.5 | 11.4 | 11.0 | 318 | 289 | 279 | 10.0 | USA |
| 38-1LB4 | 72 | 1.50 | 38 | 10.5 | 7.3 | 10.0 | 267 | 184 | 254 | 13.8 | 10.5 | 13.5 | 349 | 267 | 343 | 12.5 | USA |
| 1012-7LB4 | 90 | 1.50 | 38 | 11.6 | 9.9 | 7.0 | 295 | 251 | 178 | 14.9 | 13.3 | 10.1 | 378 | 337 | 257 | 13.2 | USA |
| 1510-6LB4 | 80 | 1.50 | 38 | 14.8 | 10.5 | 6.0 | 375 | 267 | 152 | 18.0 | 13.8 | 9.1 | 457 | 349 | 232 | 15.2 | USA |
| 1012-9LB4 | 72 | 1.50 | 38 | 11.8 | 10.0 | 8.6 | 298 | 254 | 219 | 14.9 | 13.1 | 12.1 | 378 | 334 | 308 | 16.6 | USA |
| 1212-7LB4 | 90 | 1.50 | 38 | 12.5 | 12.5 | 7.0 | 318 | 318 | 178 | 15.5 | 15.5 | 10.0 | 394 | 394 | 254 | 17.9 | USA |
| 1611-6LB4 | 72/60 | 1.50 | 38 | 16.1 | 11.5 | 6.0 | 410 | 292 | 152 | 19.3 | 14.5 | 9.0 | 489 | 368 | 229 | 18.2 | USA |
| 1212-9LB4 | 72 | 1.50 | 38 | 12.5 | 12.5 | 9.0 | 318 | 318 | 229 | 15.5 | 15.5 | 12.0 | 394 | 394 | 305 | 23.0 | USA |
| 107LB4 | 54 | 1.50 | 38 | 11.0 | 11.0 | 11.6 | 279 | 279 | 295 | 14.0 | 14.0 | 14.6 | 356 | 356 | 372 | 23.1 | USA |
| 1017-8LB4 | 64 | 1.50 | 38 | 17.3 | 10.3 | 8.0 | 438 | 260 | 203 | 20.3 | 13.4 | 11.0 | 514 | 340 | 279 | 23.2 | USA |
| 522LB4 | 60 | 1.50 | 38 | 19.3 | 11.3 | 6.9 | 489 | 286 | 175 | 22.8 | 15.0 | 10.0 | 578 | 381 | 254 | 24.4 | USA |
| 1017-11LB4 | 36 | 1.50 | 38 | 17.1 | 10.1 | 10.6 | 435 | 257 | 270 | 20.3 | 13.3 | 13.8 | 514 | 337 | 349 | 30.2 | USA |
| 1212-12LB4 | 54 | 1.50 | 38 | 12.5 | 12.5 | 12.0 | 318 | 318 | 305 | 15.5 | 15.5 | 15.0 | 394 | 394 | 381 | 30.7 | USA |
| 1017-13LB4 | 48 | 1.50 | 38 | 16.8 | 9.8 | 12.6 | 425 | 248 | 321 | 20.3 | 13.3 | 15.8 | 514 | 337 | 400 | 33.8 | USA |
| 1017-17LB4 | 32/16 | 1.50 | 38 | 17.0 | 9.9 | 16.5 | 432 | 251 | 419 | 20.4 | 13.3 | 19.5 | 518 | 337 | 495 | 45.4 | USA |
| 17-1LB4 | 24 | 1.50 | 38 | 19.0 | 14.6 | 10.4 | 483 | 372 | 264 | 22.4 | 18.1 | 13.4 | 568 | 461 | 340 | 47.3 | USA |
| 1714-12LB4 | 36 | 1.50 | 38 | 16.8 | 13.8 | 12.6 | 425 | 349 | 321 | 19.5 | 16.5 | 15.1 | 495 | 419 | 384 | 47.7 | USA |
| 175LB4 | 36 | 1.50 | 38 | 19.4 | 12.4 | 12.3 | 492 | 314 | 311 | 22.4 | 15.4 | 15.4 | 568 | 391 | 391 | 48.2 | USA |
| 2414-12LB4 | 24 | 1.50 | 38 | 24.0 | 13.9 | 12.5 | 610 | 353 | 318 | 28.3 | 17.3 | 15.6 | 718 | 438 | 397 | 68.2 | USA |
| 1010-7LB4 | 90/72 | 1.75 | 44 | 10.0 | 10.0 | 7.0 | 254 | 254 | 178 | 14.0 | 14.0 | 10.0 | 356 | 356 | 254 | 11.5 | USA |
| 108-8LB4 | 72 | 1.75 | 44 | 10.5 | 8.0 | 8.5 | 267 | 203 | 216 | 14.0 | 11.5 | 12.0 | 356 | 292 | 305 | 11.7 | USA |
| 1313-10LB4 | 24 | 1.75 | 44 | 13.5 | 13.0 | 10.5 | 343 | 330 | 267 | 17.5 | 16.5 | 13.5 | 445 | 419 | 343 | 30.2 | USA |
| 1117-13LB4 | 18/36 | 1.75 | 44 | 11.0 | 17.0 | 13.0 | 279 | 432 | 330 | 14.5 | 20.5 | 16.5 | 368 | 521 | 419 | 39.8 | USA |
| 77-7LB4 | 72 | 2.00 | 51 | 7.0 | 7.3 | 7.5 | 178 | 184 | 191 | 11.8 | 11.8 | 11.3 | 298 | 298 | 286 | 6.2 | USA |
| C78EKIT | 24 | 2.00 | 51 | 13.6 | 11.4 | 8.8 | 345 | 289 | 222 | 18.3 | 16.2 | 13.1 | 465 | 411 | 333 | 22.1 | USA |
| 110LB4 | 54/36 | 2.00 | 51 | 12.0 | 12.0 | 11.5 | 305 | 305 | 292 | 16.0 | 16.0 | 15.5 | 406 | 406 | 394 | 27.1 | USA |
| STK101LB4 | 36 | 2.00 | 51 | 17.3 | 10.0 | 12.8 | 438 | 254 | 324 | 21.7 | 14.4 | 16.8 | 551 | 367 | 425 | 36.0 | USA |
| C130EKIT | 12 | 2.00 | 51 | 14.0 | 13.0 | 12.4 | 355 | 331 | 314 | 18.9 | 17.9 | 16.8 | 479 | 455 | 425 | 36.9 | USA |
| STK102LB4 | 36 | 2.00 | 51 | 19.3 | 12.4 | 12.3 | 489 | 314 | 311 | 23.6 | 16.8 | 16.3 | 600 | 425 | 413 | 47.8 | USA |
| STK108LB4 | 24 | 2.00 | 51 | 16.8 | 16.8 | 12.6 | 425 | 425 | 321 | 21.0 | 21.0 | 16.8 | 533 | 533 | 425 | 58.1 | USA |
| C225EKIT | 9 | 2.00 | 51 | 21.4 | 15.2 | 12.0 | 543 | 386 | 305 | 23.3 | 20.1 | 16.3 | 591 | 510 | 413 | 63.8 | USA |
| C416EKIT | 4 | 2.00 | 51 | 22.8 | 19.8 | 15.8 | 578 | 502 | 400 | 27.8 | 24.8 | 20.0 | 706 | 630 | 508 | 116.0 | USA |
| 46-5L | 120 | 2.25 | 57 | 6.3 | 4.3 | 5.5 | 159 | 108 | 140 | 11.0 | 9.0 | 10.3 | 279 | 229 | 260 | 2.4 | USA |
| 56-8LB4 | 160 | 2.25 | 57 | 6.5 | 5.8 | 7.8 | 165 | 146 | 197 | 11.3 | 10.5 | 12.6 | 286 | 267 | 321 | 4.7 | USA |
| 50LB8 | 9 | 2.25 | 57 | 23.1 | 14.1 | 23.0 | 588 | 359 | 584 | 27.9 | 19.0 | 28.0 | 708 | 483 | 711 | 123.2 | USA |
| E3KIT1 | 18 | 2.50 | 64 | 9.7 | 8.7 | 10.0 | 247 | 222 | 254 | 16.1 | 15.1 | 15.5 | 408 | 383 | 394 | 13.9 | USA |
| E6KIT | 12 | 2.50 | 64 | 9.5 | 8.5 | 15.0 | 243 | 217 | 381 | 16.1 | 15.1 | 20.5 | 408 | 383 | 521 | 20.1 | USA |
| E12KIT1/2 | 8/16 | 2.50 | 64 | 13.3 | 11.8 | 14.5 | 338 | 300 | 368 | 19.8 | 18.3 | 20.0 | 503 | 465 | 508 | 37.4 | USA |
| E24KIT1/2 | 6 | 2.50 | 64 | 21.8 | 13.3 | 15.0 | 554 | 338 | 381 | 28.3 | 19.8 | 20.5 | 719 | 503 | 521 | 71.3 | USA |
